Hydraulischer Durchlauf-Antrieb
Created with Pixso. 7 Inch IP66 Small Backlash Worm Gear Slew Drive With Special Hydraulic Motor For Construction Machinery

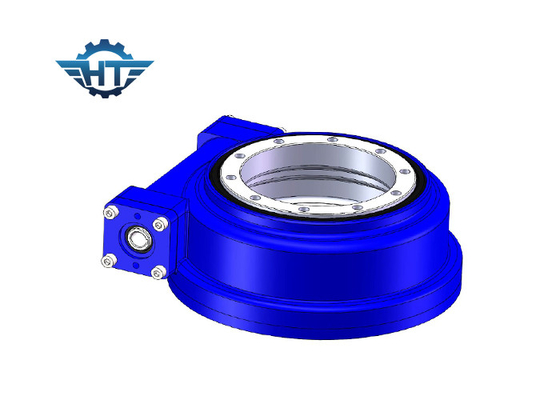

7 Inch IP66 Small Backlash Worm Gear Slew Drive With Special Hydraulic Motor For Construction Machinery

7 Inch IP66 Small Backlash Worm Gear Slew Drive With Special Hydraulic Motor For Construction Machinery

Brand Name: HangTuo
Model Number: VE 7
MOQ: 1-teilig
Preis: USD 280~504 / pc
Delivery Time: 15~45 Tage
Payment Terms: L/C, T/T, Western Union
Detail Information
Herkunftsort:
China
Zertifizierung:
CE, ISO9001
Gang-Verhältnis:
57:1
Art:
Beigefügt
Anwendung:
Baumaschinen und Solarenergie
Fahrer:
Hydraulikmotor und Elektromotor
IP-Grad:
IP66, IP65
Farbe:
wie verlangt
Genauigkeit:
0,01 Grad
Effizienz:
40%
Verpackung Informationen:
SPERRHOLZ-KASTEN
Versorgungsmaterial-Fähigkeit:
2000 PC pro Monat
Hervorheben:

solar tracker drive

,

slewing gear

Product Description

Advantages



1. High backholding torque to improve the solar tracking system's safety

2. 360 degree rotating range

3. Enveloping worm drive inside

4. Multi tooth contact to ensure high load

5. Self-locking function



Technical Data



VE Model Performance Parameters
Model Rated Output Torque (N.m) Holding Torque (N.m) TiltingTorque (N.m) Axial Load (kN) Radial Load (kN) Ratio Effeciency Precision (degree) IP Working Temp.(℃) Self-locking Weight (kg)
3" 600 5800 2100 3.6 15 31:1 43% ≤0.1 66 -30~+120 Yes 12kg
5" 800 9200 5000 16 27 37:1 43% ≤0.1 66 -30~+120 Yes 18kg
6" 2250 20400 11200 50 80 51:1 43% ≤0.1 66 -30~+120 Yes 28kg
7" 1750 13200 7000 34 58 57:1 43% ≤0.1 66 -30~+120 Yes 32kg
9" 4300 27200 16000 60 130 61:1 43% ≤0.1 66 -30~+120 Yes 52kg
12" 5600 40560 25000 77 190 78:1 43% ≤0.1 66 -30~+120 Yes 65kg
14" 6750 44200 48000 110 230 85:1 43% ≤0.1 66 -30~+120 Yes 88 kg
17" 9460 53040 67000 142 390 102:1 43% ≤0.1 66 -30~+120 Yes 135 kg
21" 16000 65000 89000 337 640 125:1 43% ≤0.1 66 -30~+120 Yes 192 kg
25" 21450 89000 112000 476 950 150:1 43% ≤0.1 66 -30~+120 Yes 251 kg



Remark: For more detailed dimensions and parameters, please refer to our sales drawings.



Customized Services
1. Special design based on different applications and projects
2. Different types of motors could be matched, such as hydraulic motors, stepper motors, electrical motors etc.
3. Different colors are available based on RAL code; our standard color is RAL 9006.
